使 用 说 明 书

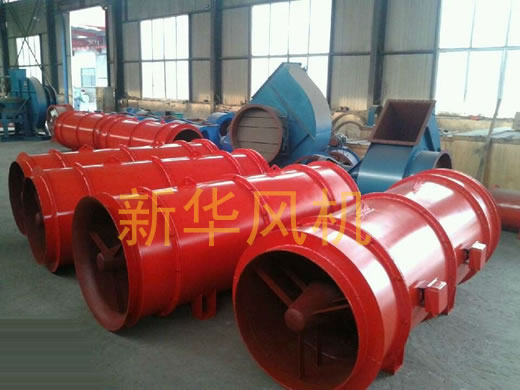

FD系列压入式对旋轴流局部通风机，是由淄博新华风机有限公司在总结国内现有对旋式轴流局扇结构与技术性能的基础上进行研制、并生产新一代用途广泛的新型节能局部通风机。该产品具有结构合理、规格齐全、效率高、节能效果明显、噪音低、送风距离远等特点。根据不同的通风阻力要求，即可整机使用又可分级使用，从而减少通风电耗、节约能源。巷道长度在2000m以内可不移动风机正常送风，减少了工人的劳动强度，节约通风时间，是煤矿井下局部通风的理想设备。同时，它亦可用于冶金、有色、黄金、化工、造船和陶瓷工业等高压通风场合。其结构特征为矿用隔爆型、对旋、消声、轴流式。
主要用途及适用范围
本产品主要用于井下作压入式局部通风机，适用于采掘工作面用各种硐室的局部通风场合。同时，也适用于其它矿山的局部通风场合及各种隧道通风。
FD系列压入式对旋轴流局部通风机技术性能参数表
|
机号 |
转速r/min |
风量m3/min |
全压Pa |
电动机型号 |
配用功率kW |
额定电压(V) |
单台电机 额定电流(A) |
|
№4.0 |
2900 |
136～89 |
256～2050 |
YBF90L-2 |
2×2.2 |
420 |
4.85/2.79 |
|
150～100 |
325～2500 |
YBF100L-2 |
2×3 |
420 |
6.4/3.7 |
||
|
165～109 |
375～3040 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
||
|
№5.0 |
2900 |
217～145 |
275～2060 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
|
240～161 |
325～2540 |
YBF132S1-2 |
2×5.5 |
420 |
11.1/6.4/3.7 |
||
|
266～178 |
400～3155 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
||
|
№5.6 |
2900 |
286～188 |
275～2850 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
|
324～215 |
375～3690 |
YBF160M1-2 |
2×11 |
420 |
21.6/12.6/7.2 |
||
|
358～238 |
440～4560 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
||
|
№6.3 |
2900 |
410～237 |
400～4775 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
|
442～256 |
460～5475 |
YBF160L-2 |
2×18.5 |
420 |
35.5/20.5/11.8 |
||
|
468～274 |
525～6125 |
YBF180M-2 |
2×22 |
420 |
41.0/24.4/13.67 |
||
|
518～318 |
640～7310 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
||
|
№7.1 |
2900 |
608～352 |
523～6228 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
|
652～377 |
602～7163 |
YBF200L2-2 |
2×37 |
420 |
67.9/40.3/22.6 |
||
|
696～402 |
686～8161 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
||
|
№8.0 |
2900 |
817～473 |
605～7200 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
|
874～506 |
692～8230 |
YBF250M-2 |
2×55 |
420 |
102.6/59.3/34.3 |
||
|
970～560 |
850～9950 |
YBF2-280S-2 |
2×75 |
420 |
134/77/44.2 |
||
|
№9.0 |
1450 |
831～480 |
394～4710 |
YBF200-4 |
2×30 |
420 |
56.8/32.8/19.0 |
|
890～520 |
450～5120 |
YBF2-225S-4 |
2×37 |
420 |
70.0/40.0/23.2 |
||
|
950～550 |
520～6170 |
YBF2-225M-4 |
2×45 |
420 |
85.0/50.0/29.0 |
||
|
№10.0 |
1450 |
1171～677 |
514～6131 |
YBF250M-4 |
2×55 |
420 |
102.7/59.2/34.3 |
|
1300～750 |
630～7540 |
YBF2-280S-4 |
2×75 |
420 |
140/81.0/47.0 |
||
|
1380～800 |
710～8520 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
||
|
№11.2 |
1450 |
1650～950 |
650～7690 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
|
1770～1020 |
750～8790 |
YBF2-315S-4 |
2×110 |
420 |
201/116/67.2 |
||
|
1880～1090 |
850～9930 |
YBF2-315M-4 |
2×132 |
420 |
240/139/80.5 |
The next book in that
FD series Push-rotating axial local fan, is from Zibo Xinhua fan limited review of domestic existing contra-rotating axial flow fan structure and technical performance on the basis of the development, and the production of a new generation of wide use of new energy-saving ventilating machine local. The product has the advantages of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise, air distance and so on. According to the different ventilation resistance requirements, can the use can be graded using, thereby reducing ventilation power consumption, energy saving. Tunnel length within2000mcan not move the fan normal air supply, reduce the labor intensity of the workers, saving ventilation time, is ideal equipment for coal mine local ventilation in mine. At the same time, it can also be used in metallurgy, nonferrous metals, gold, chemical industry, shipbuilding and ceramic industry and other high pressure ventilating occasion. The structure characteristics of mining flameproof, counter-rotating, muffler, axial flow.
The main purpose and scope
The products are mainly used in underground press type ventilation machine, suitable for mining work face with a variety of chamber of local ventilation. At the same time, also applies to other mine local ventilation occasion and all kinds of tunnel ventilation.
FD series Push-rotating axial flow ventilating machine local technical performance parameters table
|
Machine number
|
SPEED r/min |
Air volume m3/min |
Total pressure Pa |
MODEL |
Matched power kW |
Rated voltage (V) |
The single motor Rated current (A) |
|
№4.0 |
2900 |
136～89 |
256～2050 |
YBF90L-2 |
2×2.2 |
420 |
4.85/2.79 |
|
150～100 |
325～2500 |
YBF100L-2 |
2×3 |
420 |
6.4/3.7 |
||
|
165～109 |
375～3040 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
||
|
№5.0 |
2900 |
217～145 |
275～2060 |
YBF112M-2 |
2×4 |
420 |
8.1/4.7 |
|
240～161 |
325～2540 |
YBF132S1-2 |
2×5.5 |
420 |
11.1/6.4/3.7 |
||
|
266～178 |
400～3155 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
||
|
№5.6 |
2900 |
286～188 |
275～2850 |
YBF132S2-2 |
2×7.5 |
420 |
14.8/8.66/4.97 |
|
324～215 |
375～3690 |
YBF160M1-2 |
2×11 |
420 |
21.6/12.6/7.2 |
||
|
358～238 |
440～4560 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
||
|
№6.3 |
2900 |
410～237 |
400～4775 |
YBF160M2-2 |
2×15 |
420 |
28.8/17.0/9.6 |
|
442～256 |
460～5475 |
YBF160L-2 |
2×18.5 |
420 |
35.5/20.5/11.8 |
||
|
468～274 |
525～6125 |
YBF180M-2 |
2×22 |
420 |
41.0/24.4/13.67 |
||
|
518～318 |
640～7310 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
||
|
№7.1 |
2900 |
608～352 |
523～6228 |
YBF200L1-2 |
2×30 |
420 |
56.9/32.9/18.5 |
|
652～377 |
602～7163 |
YBF200L2-2 |
2×37 |
420 |
67.9/40.3/22.6 |
||
|
696～402 |
686～8161 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
||
|
№8.0 |
2900 |
817～473 |
605～7200 |
YBF225M-2 |
2×45 |
420 |
82.1/48.4/27.4 |
|
874～506 |
692～8230 |
YBF250M-2 |
2×55 |
420 |
102.6/59.3/34.3 |
||
|
970～560 |
850～9950 |
YBF2-280S-2 |
2×75 |
420 |
134/77/44.2 |
||
|
№9.0 |
1450 |
831～480 |
394～4710 |
YBF200-4 |
2×30 |
420 |
56.8/32.8/19.0 |
|
890～520 |
450～5120 |
YBF2-225S-4 |
2×37 |
420 |
70.0/40.0/23.2 |
||
|
950～550 |
520～6170 |
YBF2-225M-4 |
2×45 |
420 |
85.0/50.0/29.0 |
||
|
№10.0 |
1450 |
1171～677 |
514～6131 |
YBF250M-4 |
2×55 |
420 |
102.7/59.2/34.3 |
|
1300～750 |
630～7540 |
YBF2-280S-4 |
2×75 |
420 |
140/81.0/47.0 |
||
|
1380～800 |
710～8520 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
||
|
№11.2 |
1450 |
1650～950 |
650～7690 |
YBF2-280M-4 |
2×90 |
420 |
167/96/55.5 |
|
1770～1020 |
750～8790 |
YBF2-315S-4 |
2×110 |
420 |
201/116/67.2 |
||
|
1880～1090 |
850～9930 |
YBF2-315M-4 |
2×132 |
420 |
240/139/80.5 |
